DC/DC TPS30-150W Print Modul

Up to 5 years warranty; This price does not include VAT; FOB Shanghai port price outside mainland China;
Up to 5 years warranty; This price does not include VAT; FOB Shanghai port price outside mainland China;
Cumulative Sales 10 Cumulative Reviews 0
Price:
CNY
¥285.00
Freight estimate:
to
Estimated Delivery Time:
Please select the country you want to ship to
    Please select the information you wantX
  • :
    TPS30-PMD24S【9-75V to 24V】
    TPS30-PMD12S【9-75V to 12V】
    TPS75-PMD12S【9-75V to 12V
    TPS75-PMD24S【9-75V to 24V】
    TPS150-PMD12S【9-75V to 12V】
    TPS150-PMD24S【9-75V to 24V】
Quantity:
-
+
0 in Stock
Delivery Date:
2-4 Weeks
  • Description
  • Reviews
Specifications
Place of Origin: Made in China Brand: TPS Scene: Industrial Automation, Telecommunication, Measuring Equipment, Military Mounting: Other
Product Display



DC/DC TPS30-150W Print Modul


● 30 W - 150 W Isolated 1500 VDC
● Efficiency to 91 %
● Fixed Switching Frequency
● Input Under Voltage Protection
● Over Temperature Protection
● Over Voltage/Current Protection
● Remote On/Off
● Industry Standard 1/4, 1/2-Brick Package






Article No. Article Name Input voltage (v) Output voltage (v) Output Current (A) %Efficiency Capacitive load  Dimension L * W * H(mm)
901003009 TPS30-PMD24S 9-75 24 0-1.2 87% UF500 37.2*57.9*12.7
901003010 TPS30-PMD12S 9-75 12 0-2.5 87% UF1000 37.2*57.9*12.7
901003005 TPS75-PMD12S 9-75 12 0-6.2 89% UF2000 37.2*57.9*12.7
901003006 TPS75-PMD24S 9-75 24 0-3.1 90% UF1000 37.2*57.9*12.7
901003003 TPS150-PMD12S 9-75 12 0-12.5 88% UF5000 61*57.9*12.7
901003004 TPS150-PMD24S 9-75 24 0-6.2 89% UF2000 61*57.9*12.7
901003007 TPS150-PMD12D 9-75 12-12 0-6.2/0-6.2 88% UF2000 61*57.9*12.7
901003008 TPS150-PMD24D 9-75 24/24 0-3.1/0-3.1 89% UF1000 61*57.9*12.7

Product Description
Product Name DC/DC TPS30-150W Print Modul
Accessories  and Packing 1x Power supply, 1x Manual
30W,75W,150W Input Range:    9 - 75
Nominal Input:    36 VDC
Output Voltage:     See Table
All Specifications typical at Nominal Line, Full Load, and at 25°C unless otherwise noted

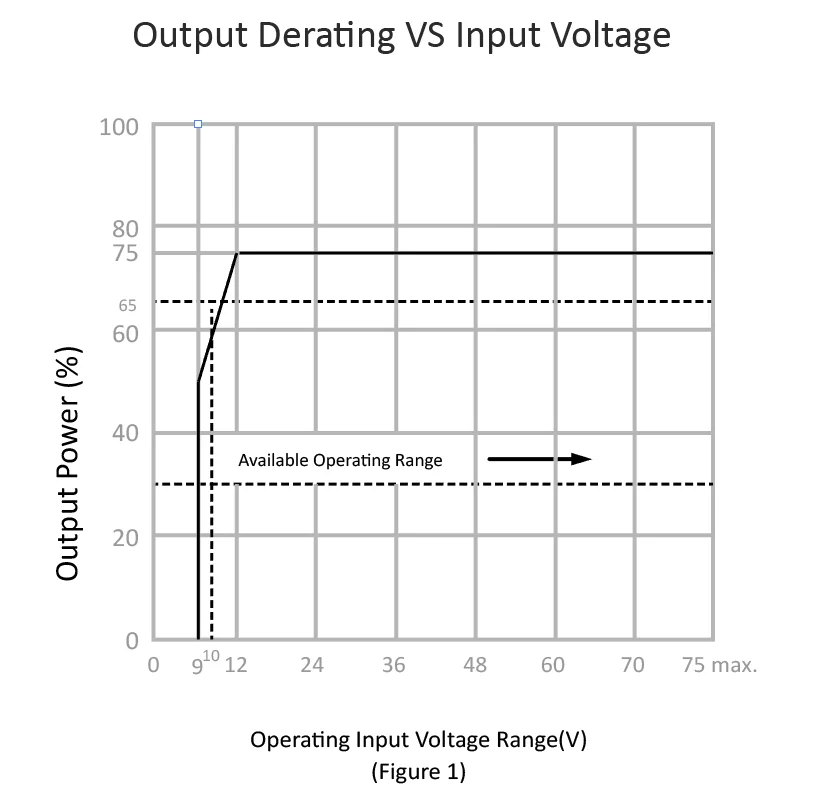

Vin = 9 - 12 V, Output Current = 0.8 * Io max.
Input Operating Input Voltage Range:  See Table
Input Surge Voltage (100 ms max.):  100 VDC (9 - 75 V) max.
Under Voltage Lockout:   Power up 9 VDC
Power Down:    7.5 VDC
Positive Logic Remote On/Off:  (See Note 5.)
Input Filter:    LC Type
Output Voltage Accuracy:    ± 1.5 % max.
Transient Response: 25 % Step Load Change: < 500 μs
External Trim Adj. Range (Note 6):  ± 10 %
Ripple & Noise, 20 MHz BW:
Humidity:     95 % RH max. Non Condensing
12 V & 15 V:       60 mV RMS, 120 mV pk-pk max.
24 V & 28 V:    100 mV RMS, 280 mV pk-pk max.
48 V:     200 mV RMS, 480 mV pk-pk max.
Temperature Coefficient:   ± 0.03 % / °C
Short Circuit Protection:   Continuous
Line Regulation (Note 1):   ± 0.2 % max.
Load Regulation (Note 2):   ± 0.2 % max.
Over Voltage Protection Trip Range, % Vo nom.: 115 - 140 %
Current Limit:    105 - 200 % Nominal Output
Efficiency:     See Table
Isolation Voltage:    Input/Output 1500 VDC min.
Input/Case, Output/Case:    1500 VDC min.
Isolation Resistance:   107 Ω min.
Isolation Capacitance:   12 V / 15 V 3500 pF typical
24 V, 28 V, 48 V:    2500 pF typical
Switching Frequency:    200 KHz typical
Operating Case Temperature:    -40°C - 100°C
Storage Temperature:   -55°C - 105°C
Thermal Shutdown, Case Temperature:  100°C typical
MTBF:     300.000/h
Dimensions:    See Table
Case Material:     Aluminum Baseplate with Plastic Case
Weight:     110 g
Safety, EMC  CE compliance with Low-Voltage Directive 2014/35/EU
EMC Directive compliance with 2014/30/EU
Safety compliance with UL508, UL60950-1, EN60950-1
Note 1. Measured from high Line to low Line
    Measured from full Load to zero Load
2. Output Ripple/Noise measured with 10 uF Tantalum (for 48 V out with 10 uF Aluminum)
    and 1 uF Ceramic Capacitor across Output
3. Logic Compatibility open Collector ref. to – Input
4. Start up Time 110 ms typical
5. Module On > 3.5 VDC - 75 VDC or Open Circuit
    Module Off < 1.2 VDC
6. The Input external Capacitor recommend to Parallel with 330 uF
7. ESR < 0.7 Ω to reduce the Input Ripple Voltage
8. Max. Case Temperature 100°C
Main applications ● Industry Automation
● Telecom Communication
● Measuring Equipment
● Military

Our workshop



product Details

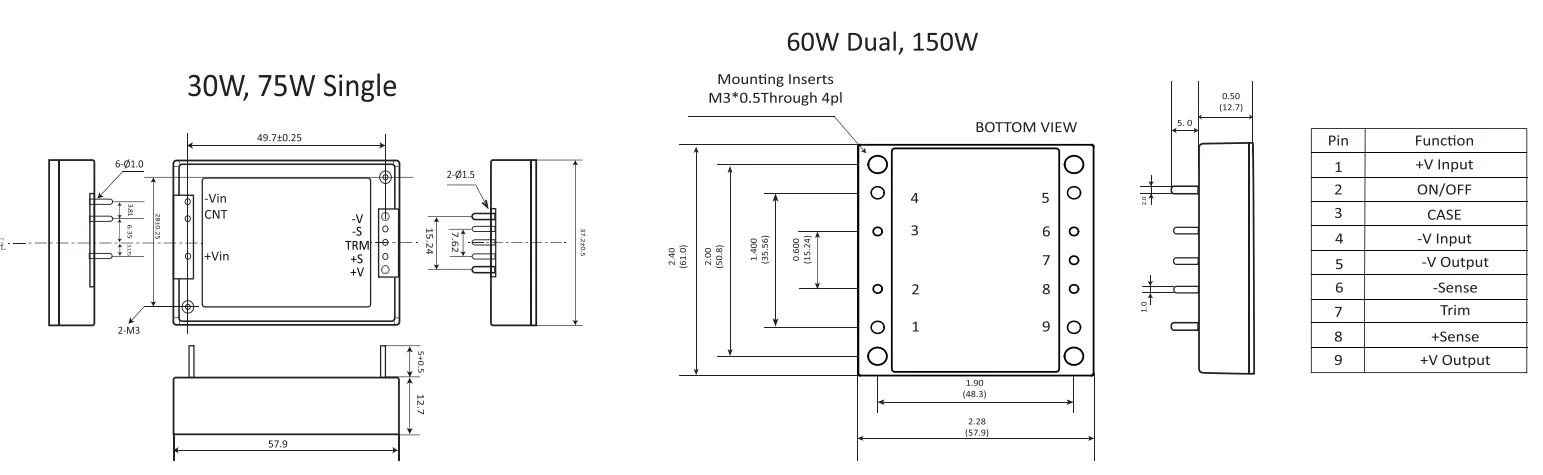

pin Assignment and size (mm)


Material:Alu-6061
